RRC2130

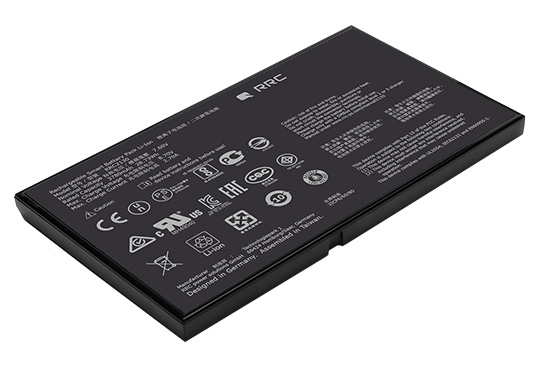

Bloc-batterie standard RRC2130 (2S1P)
avec 7,20V / 4,17Ah / 30,02Wh
- Homologations mondiales et conformité aux normes de sécurité
- Pas de coûts de développement, mise sur le marché rapide
- Batteries intelligentes dotées de nombreuses fonctionnalités conformes à la spécification SMBus
- Cellules au lithium de pointe avec la plus haute densité énergétique
- Courant de décharge élevé
- Optimisation du profil de charge JEITA
- Caractéristiques de sécurité nombreuses et redondantes
- Protection ESD accrue jusqu'à 8.00kV
- Jusqu'à 80 % de la capacité initiale après 800 cycles
Vous souhaitez obtenir plus d'informations ?
Fiche produit RRC2130
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
Compliance information | IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost-R / UKCA / CCC / RCM / BIS / TISI / BSMI / UN38.3 / RoHS / REACH |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 50°C max. |
Communication bus | SMBus |
| Electrical Parameters | |
|---|---|
Nominal voltage | 7.20V |
Nominal capacity | 4.17Ah |
Initial impedance | <180mΩ @ 1kHz at 25°C |
Max. charge current | 2.70A |
Max. charge voltage | 8.40V |
Max. discharge current | 6.00A |
Battery cell configuration | 2S1P |
Battery chemistry | Lithium Ion (Li-Ion) |
| Battery Dimensions | |
|---|---|
Length | 150.60mm +0.50/-0.50 |
Width | 86.20mm +0.40/-0.40 |
Thickness | 8.35mm +0.25/-0.25 |
Weight | 172g |
Contacts | +, +, C, D, T, -, - |
| Ingress protection | IP40 |
| Safety Features | |
|---|---|
CUV (Cell Under Voltage) | Protection against deep discharge |
COV (Cell Over Voltage) | Protection against over charge |
OTC (Over Temperature in Charge) | Protection against overheating while charging |
OTD (Over Temperature in Discharge) | Protection against overheating during discharging |
| OCC (Over Current in Charge) | Protection against overcurrent while charging |
| OCD (Over Current in Discharge) | Protection against overcurrent during discharging |
| OLD (Overload in Discharge) | Protection against overload during discharging |
| SCC (Short Circuit in Charge) | Protection against short circuits while charging |
| SCD (Short Circuit in Discharge) | Protection against short circuits during discharging |
| CTO (Charge Timeout) | Protection against prolonged charging |
| Battery Life Management | Protection against overcharging when battery aged |
FLATPAQ RRC2130 est homologué dans le monde entier
