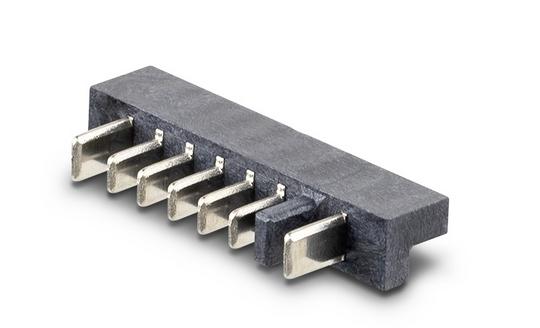

RRC-MC21-90-20
Connecteur d'accouplement pour batteries
- Convient aux blocs-batteries standard RRC21xx
- Courant de charge et de décharge de la batterie de 7A max.
- Connecteur mâle à 7 broches
- Pas de 2,5 mm
- Compatible RoHS et REACH
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-MC21-90-20
Fiche produit RRC-MC21-90-20
Specifications
| Ratings | |
|---|---|
| Current | 7.00A max. / pin |
| Voltage | 30.00VDC |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | 50µin Nickel on contact area |
| Operating Temperature | -40°C to +105°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 0.04Ohm max. |
| Insulation Resistance | 0.10Ohm min. at 500VDC/1min |
| Dielectric withstanding voltage | 500.00VAC/1min |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 300g min. / pin |
| Dimensions (LxWxH) | 24.50mm x 9.50mm x 4.50mm |
| Weight | 1g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec (EIA-364-56C) |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC21-90-20 | |
|---|---|
| RRC part number | 211278 |
| PCB mounting | 90° PCB edge mounting |
| Packaging | |
|---|---|
| 24 connectors per tube | |
| 200 tubes per carton | |
