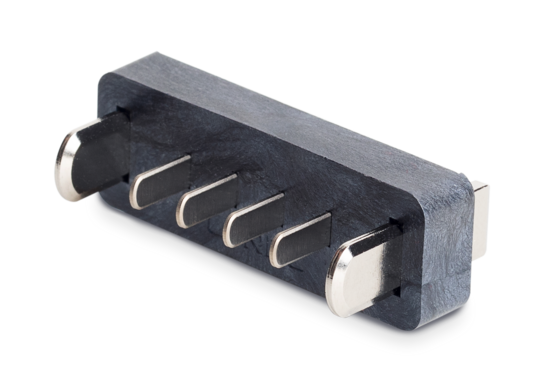

RRC-MC35-180-30
Connecteur d'accouplement pour batteries
- Convient aux blocs-batterie standard RRC3570
- Courant de charge et de décharge de la batterie de 30.00A max.
- Connecteur mâle à 6 broches
- 4 signal pins: 5mm pitch
- 2 power pins: 7mm pitch
- Compatible RoHS et REACH
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-MC35-180-30
Fiche produit RRC-MC35-180-30
Specifications
| Ratings | |
|---|---|
| Current | 30.00A max. / power pin 1.00A max / signal pin |
| Voltage | 60.00V DC (power) 6.00V DC (signal) |
| Materials | |
|---|---|
| Housing | Thermoplastic High |
| Contacts | Copper Alloy |
| Plating | 120 µin Nickel overall, 50 µin Nickel on contact area |
| Operating Temperature | -40°C to +85°C |
| Electrical Requirements | |
|---|---|
| Contact Resistance | 0.05Ohm max. |
| Insulation Resistance | 1.00Ohm min. at 500VDC/1min |
| Dielectric withstanding voltage | 500.00V/1min |
| Mechanical Requirements | |
|---|---|
| Contact Retention Force | 1500g min. / power pin 1000g min. / signal pin |
| Dimensions (LxWxH) | 35.00mm x 12.00mm x 18.50mm |
| Weight | 7g |
| Physical Requirements | |
|---|---|
| Solder Temperature | 260°C ± 5°C |
| Immersion Period | 5sec |
| Regulatory Approvals | |
|---|---|
| Green Procurement | RoHS REACH |
| RRC-MC35-180-30 | |
|---|---|
| RRC part number | 211947 |
| PCB mounting | 180° |
| Packaging | |
|---|---|
| 17 connectors per tube | |
| 48 tubes per carton | |
