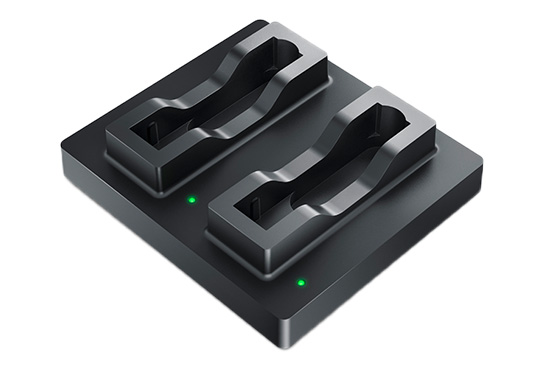

RRC-SMB-DBC
Double chargeur de batterie standard pour batteries compatibles SMBus
- Chargeur rapide universel à deux baies
- Pour les blocs-batteries standard de type RRC20xx ou les batteries compatibles SMBus de même conception
- Processus de charge optimisé pour les batteries RRC :
- Cycles de charge plus longs
- Charge plus rapide
- Facile à utiliser – Plug & Play
- Reconnaissance automatique du type de batterie et adaptation des paramètres de charge
- Bloc d'alimentation externe AC/DC pour une utilisation dans le monde entier
- Câbles d'entrée AC adaptés à chaque pays disponibles sur demande
- Adaptateur de voiture DC/DC disponible en option
Vous souhaitez obtenir plus d'informations ?
Fiche produit RRC-SMB-DBC
Specification RRC-SMB-DBC
| Input | |
|---|---|
| Voltage range | 19.00 - 26.00VDC |
| Current | 3.40A max. |
| Power | 65.00W |
| Protection | Over current (fuse protected), under voltage |
| Output | |
|---|---|
| Voltage range | 0 - 17.40VDC |
| Current | 0 – 4.80A |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±10% max. @1.00A, ±3% max. @4.00A |
| Charge power | 30.00W max. per Bay |
| Protection | Short circuit, Over temperature shutdown, Input / Output over current |
| Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: 0°C to 40°C |
| Pressure & Altitude | Operating: 1060hPa to 533hPa (-382m to 5000m) |
| Humidity (non-condensing) | Operating: 8% to 90% r.H. Non-operating: 5% to 95% r.H. |
| General | |
|---|---|
| Efficiency | ~95% to 100% load |
| Battery type | For standard battery packs in form factor RRC20XX or similar SMBus compliant batteries |
| Green procurement | RoHS 2011/65/EU + 2015/863 REACH 1907/2006 |
| Indicator | Multi-color LED (green, red, orange) |
| Housing dimensions (LxWxH) | 155.00 x 175.00 x 43.00mm |
| Weight | 325g (without power supply) |
One time Red/Orange/Green | Selftest: Charger is ready for use. |
Red/Green blinking | Battery recognition and initialization. |
Orange blinking | The battery is currently being calibrated. |
Orange light | The inserted battery is of the correct type and is currently being charged. |
Green light | The battery is charged and can be removed for use. |
Red blinking | The battery is too hot or too cold to be charged without damage. If the battery is too cold it will be charged as soon as it has warmed up sufficiently. If the battery is too hot it should be removed to cool down. |
Red light | The battery is damaged or it is a conventional battery which cannot be recharged. |
In combination with included external AC/DC power supply (PS65) | ||
Regulatory approvals | Europe | EN62368-1 (CE) |
| International | IEC62368-1 (CB) | |
Electromagnetic Emissions | Europe | EN55011, EN55032, level B |
| USA | FCC15, class B | |
Electromagnetic Immunity | ESD immunity | EN/IEC61000-4-2 |
| Electromagnetic field immunity | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted Immunity | EN/IEC61000-4-6 | |
| Magnetic Fields | EN/IEC61000-4-8 | |
| Voltage dips, short instrumentations & voltage variations | EN/IEC61000-4-11 | |
| Immunity characteristics | EN55024 |
Specification external AC/DC power supply (PS65)
| Input | |
|---|---|
Voltage range | 100.00 – 240.00VAC ±10%, 50-60Hz |
Current | 1.70A max. |
Stand by power | < 0.21W @ no load |
| Output | |
|---|---|
| Voltage range | 19.00VDC ± 5% |
| Power | 65.00W max. |
| Current range | 3.42A |
| Protection | Over voltage, over current, short circuit, over temperature |
Standard output connector | DC barrel jack, 5.50 x 2.50 x 11.00mm |
Housing dimensions (LxWxH) | 95.00 x 50.00 x 25.40mm |
Weight | 270g |
| Cable length | 1600mm ±50mm |
Approvals | Europe | CE |
| International | CB | |
| USA & Canada | cULus | |
Australia & New Zealand | RCM | |
| Russia & Eurasian Customs Union | EAC | |
| Korea | KC | |
| China | CCC | |
| Japan | PSE | |
| India | BIS | |
| Taiwan | BSMI | |
| Mexico | NOM | |
| Argentina | IRAM | |
| South Africa | SABS | |
| Singapore | Safety Mark | |
| United Kongdom | UKCA | |
| Morocco | CMIM |
Le chargeur de batterie standard RRC-SMB-DBC est homologué dans le monde entier
