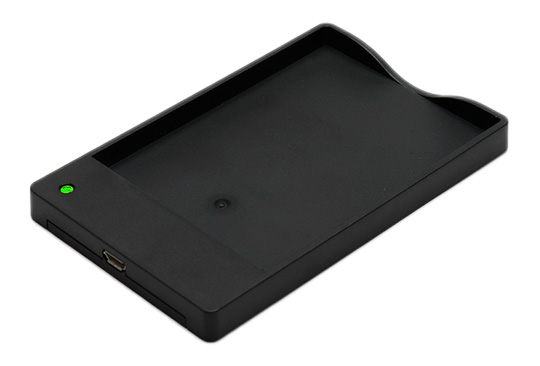

RRC-SCC1130
Chargeur de batterie 5W pour RRC1130
- Chargeur de batterie à une baie
- Convient au bloc-batterie standard RRC1130
- Processus de charge optimisé permettant un cycle de vie plus long de la batterie RRC
- Facile à utiliser – Plug & Play
- Alimentation externe enfichable pour une utilisation dans le monde entier
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-SCC1130
Fiche produit RRC-SCC1130
Specification RRC-SCC1130
| Input | |
|---|---|
| Voltage | 5.00V nom. |
| Current | 1.00A nom. |
| Power | 5.00W |
| Output | |
|---|---|
| Voltage | 4.35VDC |
| Current | 1.00A max. |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±10% max. @1.00A |
| Protection | Short circuit, Battery over/under temperature, Charger over temperature, Charger timer |
| Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operation: 0°C to 40°C |
| Pressure & Altitude | Operation: 1060hPa to 795hPa (-382m to 2000m) |
| Humidity | 10% to 90% r.H., non-condensing |
| General | |
|---|---|
| Indicator | Multi-color LED (green, red, orange) |
| Battery types | Standard battery RRC1130 |
| Green procurement | RoHS 2011/65/EU, 2015/863/EU WEEE 2012/19/EU Chinese RoHS |
| Housing dimensions (LxWxH) | 66.80 x 106.61 x 8.48mm |
| Weight | 25.00g (excluding power supply) |
Orange light | The inserted battery is of the correct type and is currently being charged. |
Green light | The battery is charged and can be removed for use. |
Red blinking | Battery detection phase |
Red light | No battery inserted, battery over/under temperature error, charger over temperature error, battery over voltage error, battery charge time-out error, input voltage too low |
In combination with included external AC/DC power supply | ||
Regulatory approvals | Europe | EN 60950-1 (CE) |
| International | IEC 60950-1 (CB) | |
Electromagnetic Emissions | Europe | EN55011, EN55032, class B |
| USA | FCC15, class B | |
Electromagnetic Immunity | Electrostatic discharge | EN/IEC61000-4-2 |
RF electromagnetic fields | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
Conducted RF disturbance | EN/IEC61000-4-6 | |
| Electromagnetic Fields | EN/IEC61000-4-8 | |
| Voltage Dips and Interrupts | EN/IEC61000-4-11 |
Specification external AC/DC power supply
| Input | |
|---|---|
Voltage | 100.00 – 240.00VAC ±10%, 50-60Hz |
Current | 0.30A max. |
Stand by power | No load <0.10W |
| Output | |
|---|---|
| Voltage | 5.00VDC ±5% |
| Power | 5.00W cont. |
| Current | 1.00A max. |
| Protection | Over current, short circuit |
| Environmental | |
|---|---|
| Temperature | Operation: 0°C to 40°C |
| Humidity | Operation: 10% to 90% r.H., non-condensing Storage: 5% to 95% r.H., non-condensing |
| Altitude | Operation: <2000m Storage: <2000m |
| General | |
|---|---|
| Efficiency | California's Energy Efficiency Level VI |
| Line / Load regulation | ±1% / ± 5% |
Ripple & Noise | 200.00mV (p-p) |
Standard output connector | Micro USB |
Housing dimensions (LxWxH) | 43.55 x 40.90 x 45.30mm for US/CA/MX/JP 43.55 x 40.90 x 60.20mm for EU/RU 43.55 x 40.90 x 37.40mm for UK 43.55 x 40.90 x 60.20mm for KR 43.55 x 40.90 x 49.00mm for AU 43.55 x 40.90 x 45.50mm for CN |
Weight | 70g max. |
| Cable length | 1.00m |
Approvals | Europe | CE |
| International | CB | |
| USA & Canada | cULus / cETLus | |
| Mexico | NOM | |
Australia & New Zealand | RCM / SAA | |
| Korea | KC | |
| China | CCC | |
| Japan | PSE | |
Russia (Customs Union) | EAC | |
| United Kingdom | UKCA |
Le chargeur de batterie standard RRC-SCC1130 est homologué dans le monde entier
