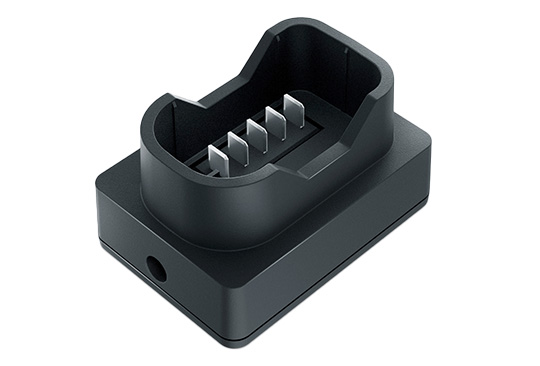

RRC-SBC2037
12.00W Batterieladegerät für RRC2037
- Batterieladegerät mit einem Schacht
- Geeignet für Standard-Batteriepack RRC2037
- Optimierter Ladeprozess ermöglicht längeren Lebenszyklus für RRC Batterie
- Einfache Bedienbarkeit - Plug and Play
- Externes Steckernetzteil für weltweiten Einsatz
Vous souhaitez obtenir plus d'informations ?
Downloads RRC-SBC2037
Fiche produit RRC-SBC2037
Specification RRC-SBC2037
| Input | |
|---|---|
| Voltage | 11.00 - 14.00VDC |
| Current | 1.00A max. |
| Protection | Over / under voltage, over current |
| Output | |
|---|---|
| Voltage | 8.40VDC |
| Current | 2.00A max. |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±5% max. @1.00A |
| Protection | Short circuit, over voltage, over current, charger timer |
| Environmental | ||
|---|---|---|
| Operation: | Storage: | |
| Temperature | 0°C bis 40°C | -20°C to 80°C |
| Pressure & Altitude | 1060hPa to 795hPa -382m to 2000m | 1060hPa to 533hPA -382m to 5000m |
| Humidity | 10% to 90% r.H., non-condensing | 5% to 95% r.H., non-condensing |
| General | |
|---|---|
| Indicator | LEDs on the RRC2037 battery are used for indication |
| Battery types | Standard battery RRC2037 |
| Green procurement | REACH 1907/2006 RoHS 2011/65/EU, 2015/863/EU WEEE 2012/19/EU Chinese RoHS |
| Cooling | convection cooled |
| Min. 1 LED is blinking | < 1min.: The inserted battery is of the correct type and is currently being charged. |
| All 4 LEDs are on and switch off after 2min. | The battery is charged and can be removed for use. |
| No LED is blinking after > 1min. | Inserted battery is defect Battery over/under temperature error Charger over temperature error Battery over voltage error Battery charge time-out error Input voltage out of range Charger defect |
| Housing dimensions (LxWxH) | 55.88 x 39.88 x 31.00mm |
| Weight | 34g (excluding power supply) |
In combination with included external AC/DC power supply
| Regulatory approvals | Europe | EN62368-1 (CE) |
| International | IEC62368-1 (CB) | |
| Electromagnetic Emissions | Europe | EN55035, EN55032, class B |
| USA | FCC15 class B | |
| Canada | ICES-003, class B | |
| Electromagnetic Immunity | Electrostatic discharge | EN/IEC61000-4-2 |
| RF electromagnetic fields | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted RF disturbance | EN/IEC61000-4-6 | |
| Electromagnetic Fields | EN/IEC61000-4-8 | |
| Voltage Dips and Interrupts | EN/IEC61000-4-11 |
Specification external AC/DC power supply
| Input | |
| Voltage | 100.00 - 240.00VAC ±10%, 50-60Hz |
| Current | 0.30A max. |
| Stand by power | No load < 0.10W |
| Ouput | |
| Voltage | 12.00VDC ±5% |
| Power | 12.00W cont. |
| Current | 1.00A max. |
| Protecttion | Over current, short circuit |
| Efficiency | California's Energy Efficiency Level VI |
| Line / Load regulation | ±1% / ±5% |
| Ripple & Noise | 200.00mV (p-p) |
| Standard output connector | DC barrel jack, 4.70 x 1.75mm |
| Housing dimensions (LxWxH) | 59.00 x 40.90 x 48.50mm for US/CA/JP |
| 59.00 x 40.90 x 63.80mm for EU | |
| 59.00 x 40.90 x 55.80mm for UK | |
| 59.00 x 40.90 x 63.80mm for KR | |
| 59.00 x 40.90 x 52.20mm for AU | |
| 59.00 x 40.90 x 48.50mm for CN | |
| Weight | 82g max. |
| Cable length | 1.00m |
| Approvals | Europe | CE |
| International | CB | |
| USA & Canada | cULus | |
| Australia & New Zealand | RCM / SAA | |
| Korea | KC | |
| China | CCC | |
| Japan | PSE | |
| United Kingdom | UKCA | |
| Morocco | CMIM |
