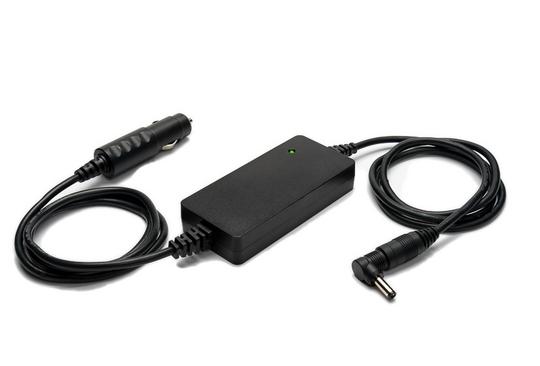

CAR90U
Adaptateur de voiture 90W
- Large plage de tension d'entrée de 11-32V
- Adaptateur de voiture ultra compact et léger
- Puissance de sortie continue de 90W
- Tension et courant de sortie peuvent être configurés via Multi-Connector-System (MCS)
- Homologations à l'échelle mondiale
- Normes de sécurité les plus élevées
- Pour une utilisation dans les voitures et les camions
- Port USB-A 5W en option
Vous souhaitez obtenir plus d'informations ?
Downloads CAR90U
Fiche produit CAR90U
Specification
| Input | |
|---|---|
| Voltage range | 11.00 - 32.00VDC |
| Switch off voltage | 10.00VDC |
| Standby current | Typical 40.00mA @ 11.00V input Typical 80.00mA @ 32.00V input |
| Input fuse | 12.00A (in CLP) |
| Protection | Reverse polarity (input fuse CLP), Under voltage protection Over temperature protection (latch-off reset) |
| Output | |
|---|---|
| Voltage range | 5.00 - 24.00VDC nominal |
| Power | 90.00W cont. |
| Initial set tolerance | ±3% max. |
| Load regulation | - 80mV max. / A |
| Line regulation | ±1% max. |
| Ripple & noise | < 0.20V pk-pk |
| Current limit | Constant current, 6.00A max. |
| Protection | Short circuit |
Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: -20°C to 40°C |
| Pressure & altitude | Operating: 1200hPa to 795hPa (max. 2000m above sea level) |
| Humidity | 5 to 95% r.H., non condensing |
| General | |
|---|---|
| Input connector | Cigarette lighter adapter (CLP) |
| Output connector | Customer-specific with multi connector system (MCS) |
| Efficiency | typical 96% at 100% load |
| MTBF | >20000h @ 25°C ambient temperature and GB per MIL-HDBK217F |
| Green procurement | RoHS 2011/65/EU + 2015/863/EU REACH 1907/2006 WEEE 2012/19/EU |
| Indicator green LED | On: Power on |
| Ingress protection rating | IEC60529, IP40 |
| Regulatory approvals | Europe | CE |
| United Kingdom | UKCA | |
| International | CB Report IEC60950-1 | |
| USA & Canada | cULus UL60950-1 | |
| Australia & New Zealand | RCM | |
| Electromagnetic emissions | Europe | EN55022 class B, EN55024 |
| USA & Canada | FCC15 class B | |
| Electromagnetic immunity | ESD immunity | IEC61000-4-2, 4kV contact / 8kV air |
| Electromagnetic field immunity | IEC61000-4-3, 80-2700MHz, 3V/m, AM 80%/1kHz | |
| Electrical fast transient/burst immunity test | IEC61000-4-4, +/-1kV, 5/50ns | |
| ISO-Impulses | ISO7637-2, pulses 1, 2a, 2b, 3a, 3b, 4 |
- Other approvals on request
Housing dimensions (LxWxH) | 115.00 x 53.70 x 21.50mm, without cables and connectors |
Input cable length | 100cm ±5% |
Output cable length | 100cm ±5% |
Weight | 250g, without cables and connectors |
CAR90 est homologué dans le monde entier
