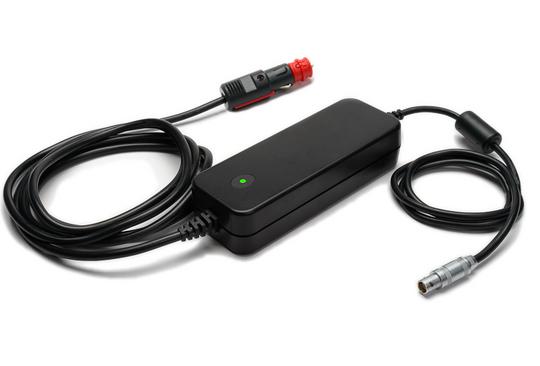

CAR100M
Adaptateur de voiture médical 100W
- Large plage de tension d'entrée de 10-32V
- Puissance de sortie maximale 110W
- Isolation galvanique pour une sécurité maximale du patient
- Connecteur d'entrée voiture/camion
- Fixation murale en option
Vous souhaitez obtenir plus d'informations ?
Downloads CAR100M
Fiche produit CAR100M
Specification
| Input | |
|---|---|
| Voltage range | 10.00 - 32.00VDC |
| Standby current | Typical 45.00mA @ 10.00V input Typical 35.00mA @ 32.00V input |
| Input fuse | 13.00A |
| Protection | Reverse polarity Over voltage protection (Transient suppression circuit) |
| Output | |
|---|---|
| Voltage range | 16.00 - 24.00V nominal |
| Power | 100.00W cont. |
| Initial set tolerance | ±3% max. |
| Load regulation | -4% max. |
| Line regulation | ±1% max. |
| Ripple & noise | < 0.12V pk-pk |
| Current limit | Constant current |
| Protection | Short circuit |
Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: -20°C to 40°C (40°C to 50°C, derating 35%) |
| Pressure & altitude | Operating: 1200hPa to 570hPa (max. 4600m above sea level) |
| Humidity | 5 to 95% r.H., non condensing |
| General | |
|---|---|
| Galvanic isolation | Isolation voltage 2.00kV |
| Input connector | Cigarette lighter adapter |
| Output connector | Customer-specific |
| Efficiency | typical 88% at 100% load |
| MTBF | > 100000h @ 25°C ambient temperature and GB per MIL-HDBK217F Humidity |
| Green procurement | WEEE, RoHS |
| Indicator | Single green LED |
| Ingress protection rating | IEC60529, IP42 |
| Regulatory approvals | Europe | CE |
| United Kingdom | UKCA | |
| International | CB Report IEC 60601-1 3rd edition | |
| USA & Canada | UL60601-1 | |
| Australia & New Zealand | RCM | |
| Electromagnetic emissions | Europe | EN 55011/55022 class B |
| USA & Canada | FCC15 class B | |
| Medical electrical equipment | IEC60601-1-2 | |
| Airborne equipment | RTCA/DO-160F, Section 21 | |
| Electromagnetic immunity | ESD immunity | IEC61000-4-2, 8kV contact/15kV air |
| Electromagnetic field immunity | IEC61000-4-3, 80-2700MHz, 30V/m, modulation 80%/200Hz | |
| Electrical fast transient/burst immunity test | IEC61000-4-4, +/-2kV, 5/50ns | |
| Surge immunity test | IEC61000-4-5, +/-0.5kVsym, 1.2/50(8/20)μs | |
| Conducted Immunity | IEC61000-4-6, 0.15-80MHz, 10V, 80%, 1KHz, AM, with CDN | |
| ISO-Impulses | ISO7637-2, pulse 1 till 5, immunity test level III | |
| Medical electrical equipment | IEC60601-1-2 | |
| UNECE vehicle regulation | E13 ECE Reg. 10 |
- Other approvals on request
Housing dimensions (LxWxH) | 165.00 x 64.00 x 38.00mm, without cables and connectors |
Input cable length | 240cm ±5% |
Output cable length | 100cm ±5% |
Weight | approx. 420g, without cables, connectors and wall-mount kit |
CAR100M est homologué dans le monde entier
